Copper Clad Aluminum Stranded wire

Model: CCAS
Cross Section Area:0.05mm²-20mm²
Capacity:300 tons/m
Conductivity: ≥62%
Packing Option: DIN 400 560 630 800

Copper Clad Aluminum Stranded wire consists of a number of small CCA wires. Density of CCA wire is lower than that of copper wire, so CCA stranded wire has advantage on length compare with copper stranded wire. That will help cable manufacturer to reduce production cost.
Feature:
High Flexibility ;Outstanding bending performance
Technical data:
Structure Calculated Cross Section Area (mm2) Calculated Overall diameter (MM) MAX D.C Resistance (Ω/km) KG/KM
Strands Strands/Nominal diamater of single wire
13 13/0.20 0.408 0.83 67.2 1.31
20 20/0.20 0.628 1.03 43.68 2.02
32 32/0.20 1.005 1.31 27.3 3.24
10 10/0.25 0.491 0.91 55.91 1.58
16 16/0.25 0.785 1.16 34.94 2.53
26 26/0.25 1.276 1.47 21.5 4.11
29 29/0.25 1.423 1.55 19.28 4.58
19 19/0.47 3.295 2.37 8.33 10.61
19 19/0.59 5.192 2.97 5.28 16.72
19 19/0.75 8.39 3.78 3.27 27.01
7 7/1.29 9.144 3.94 3 29.44
7 7/1.33 9.72 4.06 2.82 31.3

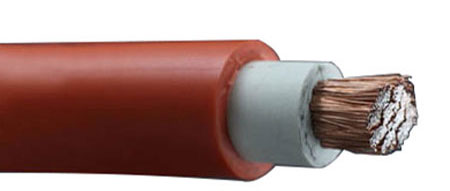

CCA stranded wires are used for electrical and industrial purpose.

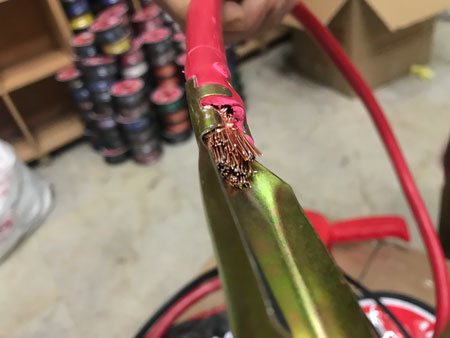

Booster Cable

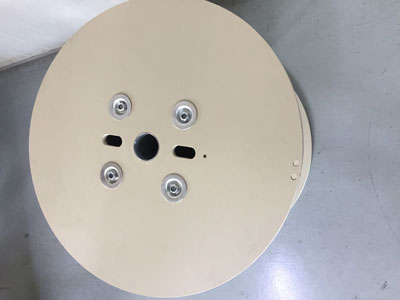

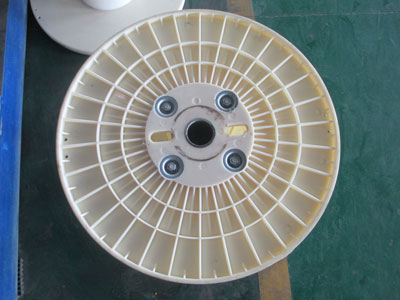

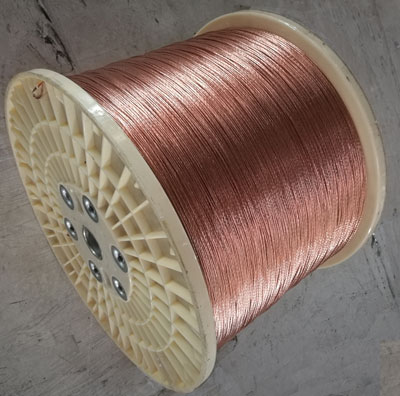

1:Bobbin Option

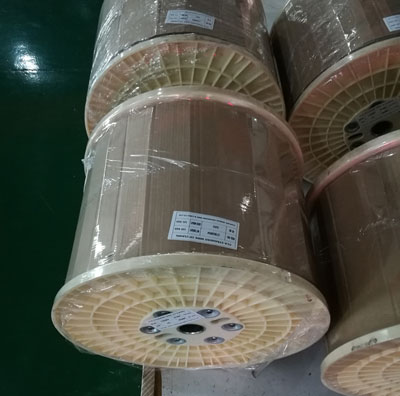

2:Packaging

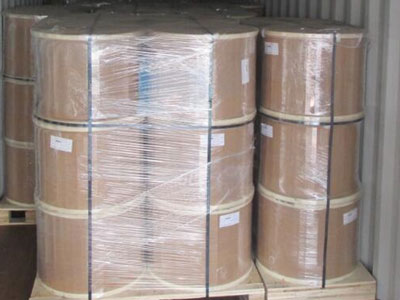

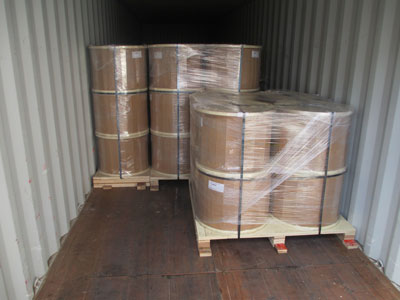

3:Shipping

Description

Copper Clad Aluminum Stranded wire consists of a number of small CCA wires. Density of CCA wire is lower than that of copper wire, so CCA stranded wire has advantage on length compare with copper stranded wire. That will help cable manufacturer to reduce production cost.
Feature:
High Flexibility ;Outstanding bending performance
Technical data:

Structure Calculated Cross Section Area (mm2) Calculated Overall diameter (MM) MAX D.C Resistance (Ω/km) KG/KM
Strands Strands/Nominal diamater of single wire
13 13/0.20 0.408 0.83 67.2 1.31
20 20/0.20 0.628 1.03 43.68 2.02
32 32/0.20 1.005 1.31 27.3 3.24
10 10/0.25 0.491 0.91 55.91 1.58
16 16/0.25 0.785 1.16 34.94 2.53
26 26/0.25 1.276 1.47 21.5 4.11
29 29/0.25 1.423 1.55 19.28 4.58
19 19/0.47 3.295 2.37 8.33 10.61
19 19/0.59 5.192 2.97 5.28 16.72
19 19/0.75 8.39 3.78 3.27 27.01
7 7/1.29 9.144 3.94 3 29.44
7 7/1.33 9.72 4.06 2.82 31.3

Application

CCA stranded wires are used for electrical and industrial purpose.

Booster Cable

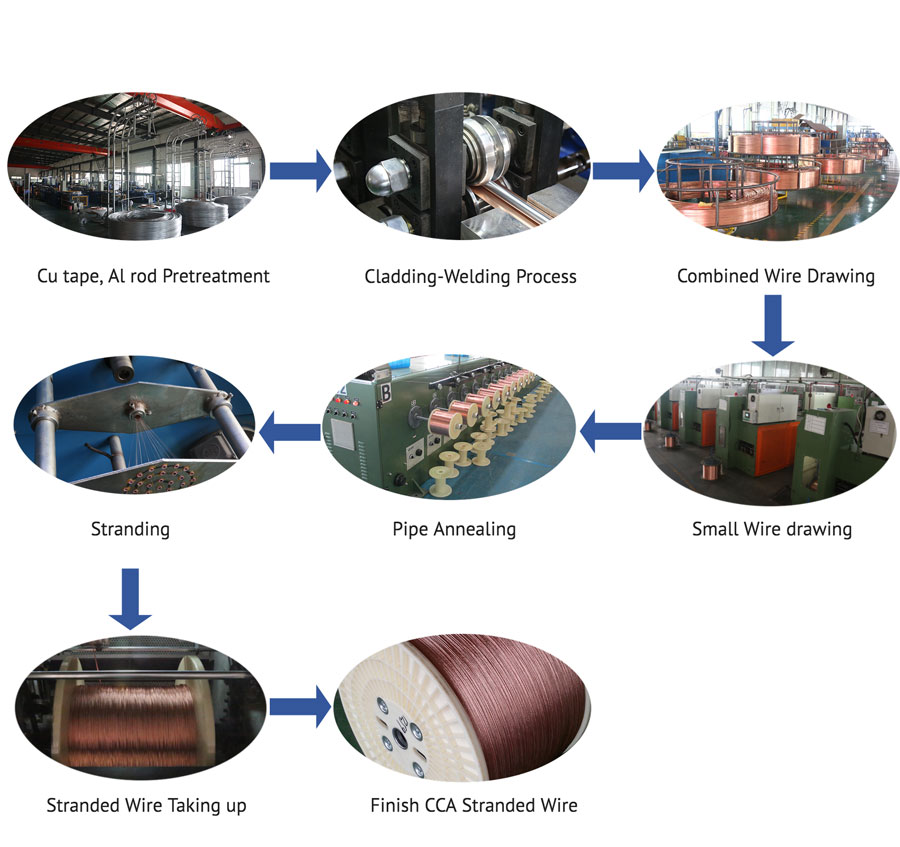

Process Flow

Shipping & Packaging

1:Bobbin Option 2:Packaging 3:Shipping
