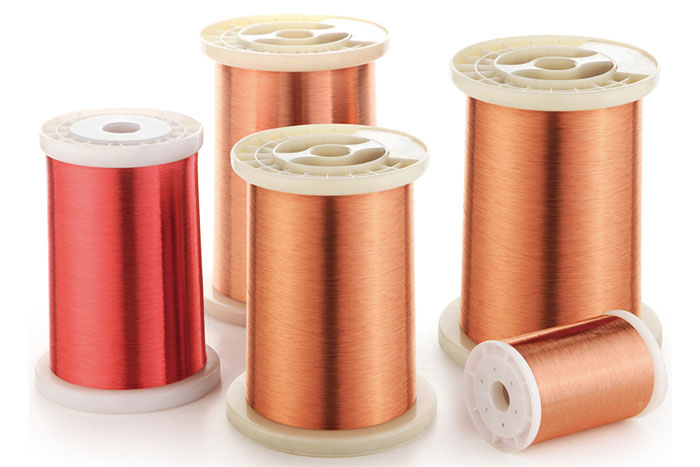

Enameled Copper Clad Aluminum wire

Model: ECCA
Diameter: :0.12-4.60
Capacity:300 Tons/M
Type: PEW,UEW,EIW,EIW/AIW
Thermal Class: Class 130,155,180,200,220
Standard: SJ/T11223-2000 GB/T6109.1 ~ 11-2008

Enameled Copper Clad Aluminum wire is a new electromagnetic wire taking copper clad aluminum as inner conductor material, with characteristics between copper and aluminum. It combines excellent conductivity of copper and light weight of aluminum.

Advantage
1. DC resistivity
The DC resistivity of CCA wire is approximately 1.45 times that of copper wire; with the same resistance, CCA wire is about 1/2 heavy of copper wire.
2. Good solderability
CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;
3. Light weight
The density of CCA wire is 1/3 of copper wire of the same diameter; very effective to reduce the weight of cables and coils.

Product Type:
Polyester Enameled CCA round wire(PEW);
Polyurethane Enameled CCA round wire(UEW);
Polyesterimide enameled CCA round wire(EIW);
Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).

1. Loudspeaker voice coil. Its frequency can reach 500Hz-1600Hz, It can reduce vibration weight and keep high fidelity effect
2. Monitor deflection coil. It can lower coil temperature, improve image’s stability, increase usage life.
3. Monitor degaussing coil. It can lower product cost

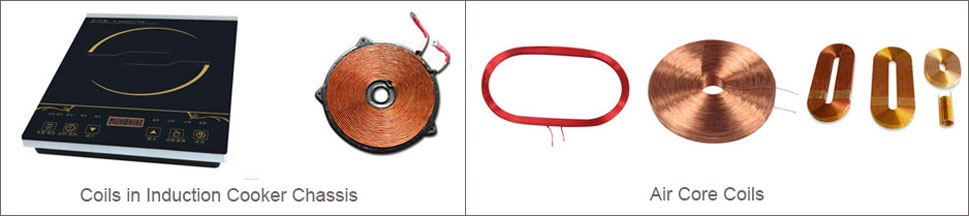

4. Transformer winding in induction cooker. It can reduce products weight.
5. Induction cooker chassis. It can reduce production cost
6. Sodium lamp ballast. It can reduce product weight.
7. Various windings of aerospace instruments. It can reduce product weight.

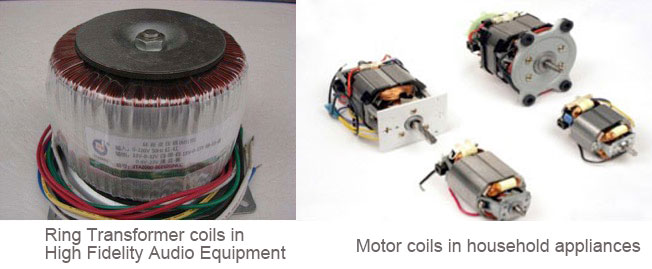

8. High-frequency transformers, general transformers;
9. Motor, household motors, micro motors, compressor
10. Induction coils
11.Others. Such as small transformer windings, micro motor rotor coils.

1:Bobbin Option

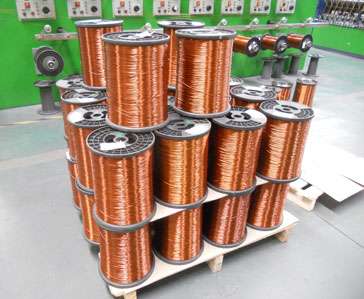

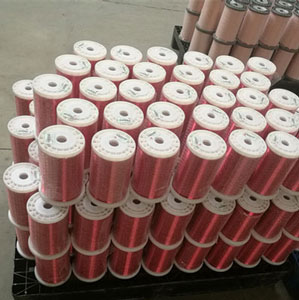

2:Packaging


3:Shipping
