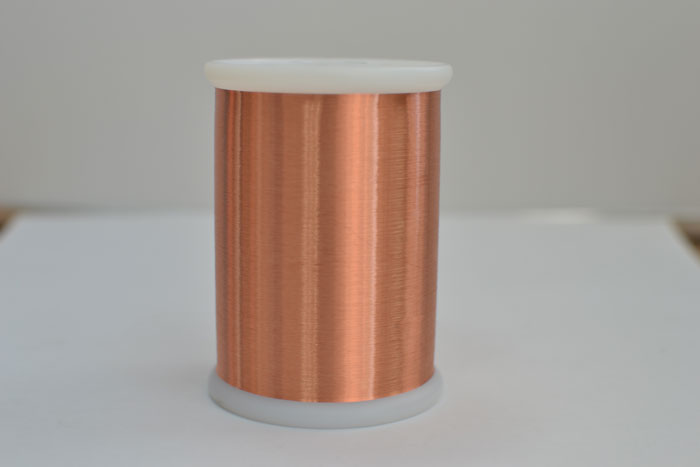

Copper Clad Aluminum Alloy wire

Model: CCAA
Diameter: 0.08mm~3mm
Capacity:300 tons/m
Standard: JBT 11867-2014

Copper Clad Aluminum Alloy wire (CCAA) is a kind of bimetallic wire by covering copper on the surface of aluminum alloy rod. CCAA has high tensile strength same as CCAM wire, and high conductivity same as CCA wire . CCAA wire can be processed same as pure copper wire.
Features:
Compared to Copper wire
1. Small density, light weight
2. No brittleness under low temperature, good creepage resistant
Compared to CCAM wire
1. Higher conductivity;
2. No electrochemical corrosion (oxidation).corrosion will lead to wire breaking
Compared to CCA wire
1.Higher tensile strength
2.Good flexibility
3.Good Solderability

Characteristics Comparison


Material

Copper Content
by volume
Model
Elongation
(%)

Tensile Strength
(Mpa)

Resistivity
(Ω.mm2/m)

Conductivity
(%)

Density
(g/cm3

Length
(M/kg)

Compressive Creep Resistance
(%)

Copper Wire
/ TR0.110 16-21 235-241 ≤0.017241 100 ≤8.89 11836 Excellent

CCS Wire
/ CCS0.110 12-19 497-507 ≤0.041000 42 ≤8.10 12990 Bad

CCA Wire
15A CCA0.110 5-12 150-155 ≤0.026760 64 ≤3.63 28988 Bad

CCAM Wire
15A CCAM0.110 8-13 198-211 ≤0.032000 53 ≤3.75 28060 Bad

CCAA Wire
15A CCAA0.110 10-14 195-205 ≤0.026500 65 ≥3.63 28988 Good

Technical Data

Description Copper Content in Mass
(%)
Aluminum Content
(%)
Norminal Diameter
(MM)
Tolerance
(MM)
Elongation
(%)
Tensile Strength
(Mpa)
Resistivity
(Ω.mm2/M)
Conductivity
(%)
Density
(g/cm3)
CCAA-15A 37%-40% 63%-60% 0.080≤d≤0.100 ±0.003 ≥9 ≥172 ≤0.0270 ≥64 ≥3.63
0.100<d≤0.120 ≥10 ≥172
0.120<d≤0.140 ≥10 ≥172
0.140<d≤0.200 ≥10 ≥172
0.200<d≤0.400 ±0.005 ≥12 ≥160
0.400<d≤0.600 ≥13 ≥150



➢ Inner conductor material of Low voltage power cable, communication &signal cable
➢ Parallel double cores line conductor telephone communication
➢ Computer local network, network cable, network line
➢ Braiding wire of signal cable and LV &MV power cable
➢ Medical equipment & connection conductor material
➢ RF cable inner conductor & shielding
➢ Enameled magnet wires
➢ Car locomotive private sidings
➢ Others

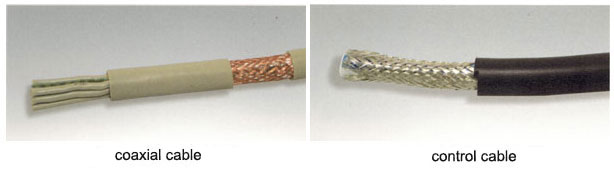

Braid Shielding

Wireless Charging Coils


Power Cable

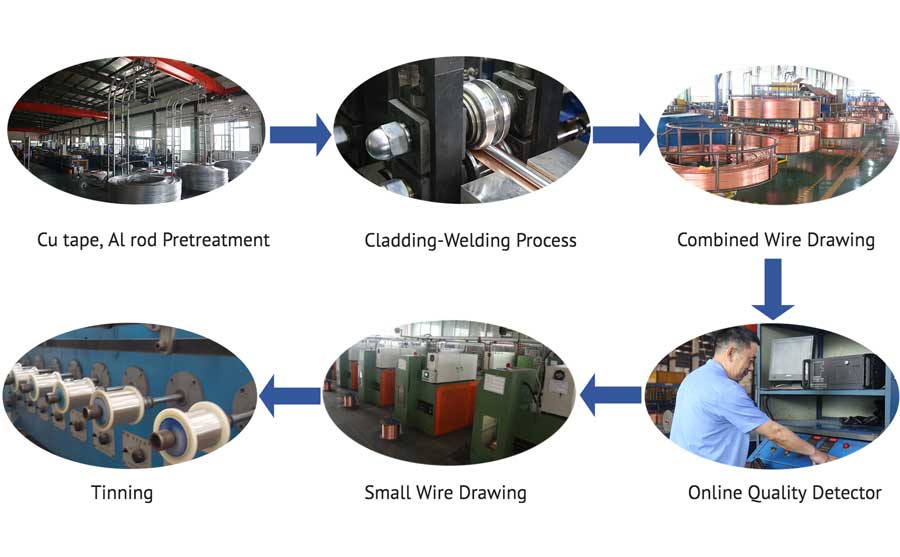

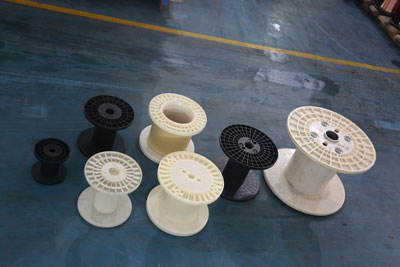

1:Bobbin Option

2:Packaging

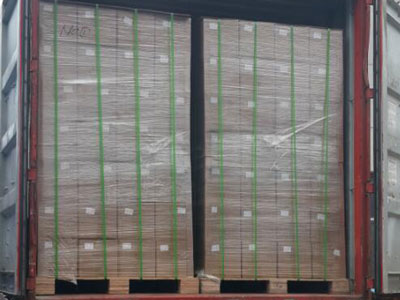

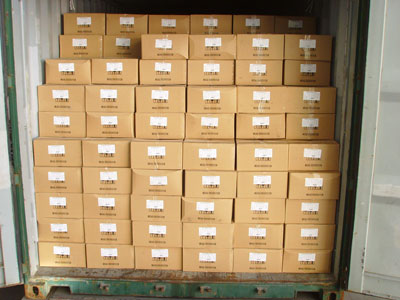

3:Shipping
