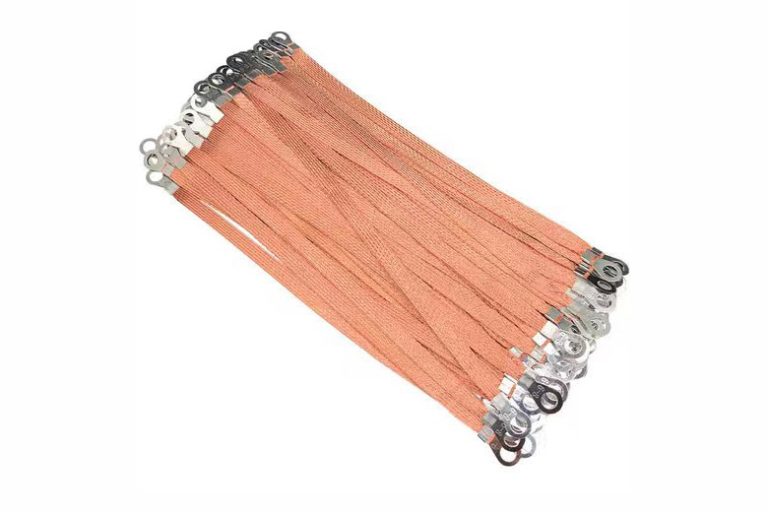

Copper Clad Aluminum (CCA) Braids Connectors
Material: Copper clad aluminum wire
Single Wire Diameter: 0.19mm
Cross Sectional Area: 2.5mm2 – 6mm2

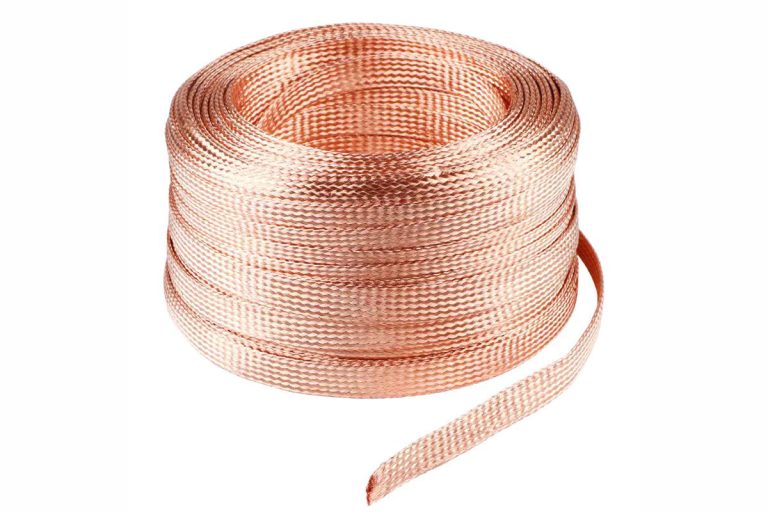

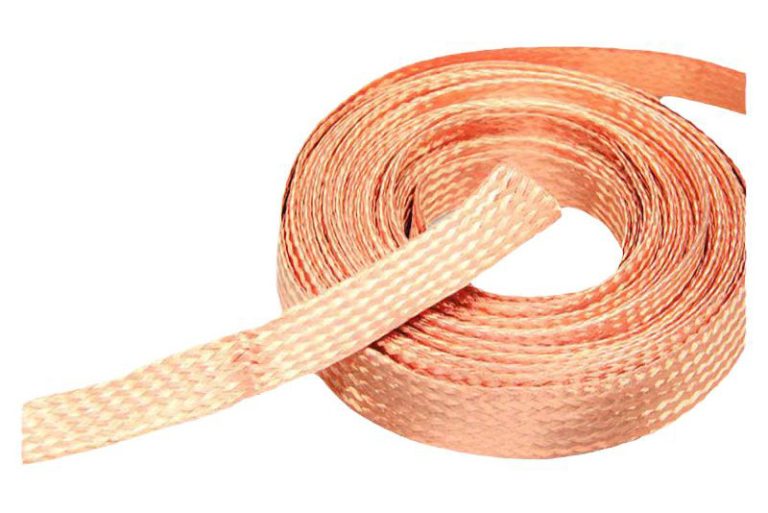

Packing Modes: in rolls, on spools or wooden drums
Single Wire Diameter: 0.19mm
Cross Sectional Area: 2.5mm2 – 6mm2
Packing Modes: in rolls, on spools or wooden drums
Description
Application
Description
The flexible copper clad aluminum (CCA) braided wires can be used as cable tray jumpers in the electrical industry.

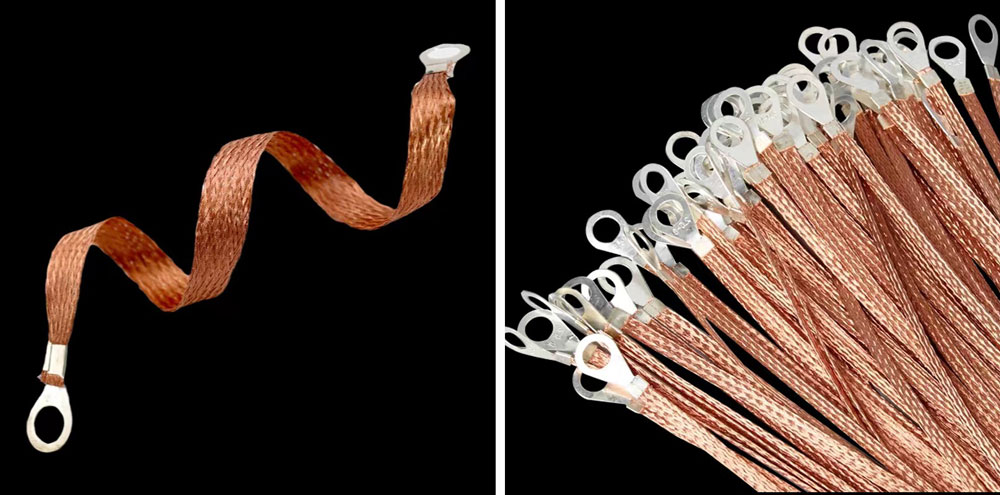

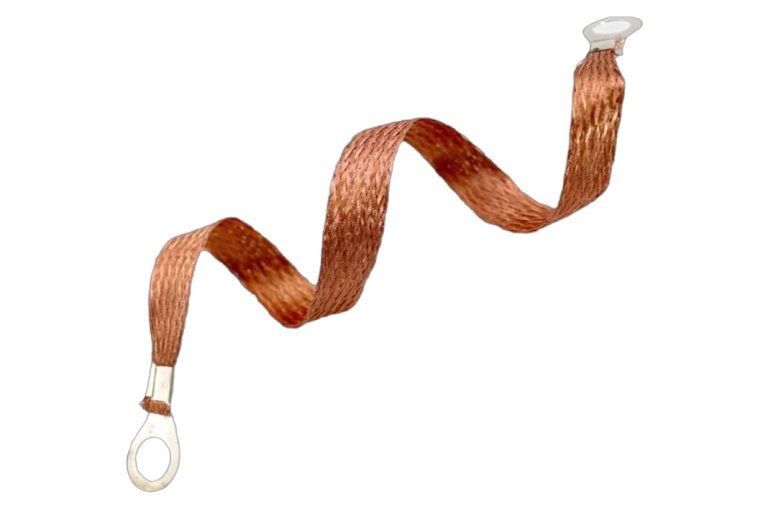

The CCA braided wires can be connected with aluminum lugs or copper foils, which are normally used for grounding connection. The regular length between holes of CCA braided connectors are 200mm, 250mm, 280mm, 300mm.
Technical Parameters:
| Model | Nominal Cross Section (mm2) | Measured Cross Section (mm2) | Wire Structure Strands*Wire Number Per Strand x Layers /Single Wire Diameter (mm) | Width Approx. (mm) | Thickness Approx. (mm) |
| GC-CCAZ-2.5 | 2.5 | 2.72 | 24x4x1/0.19 | 5.0 | 1.0 |
| GC-CCAZ –4 | 4.0 | 4.08 | 48x3x1/0.19 | 10.0 | 1.0 |
| GC-CCAZ -6 | 6.0 | 5.44 | 48x4x1/0.19 | 12.0 | 1.0 |
Application
Cable tray jumper wire
Grounding wire
Grounding wire
